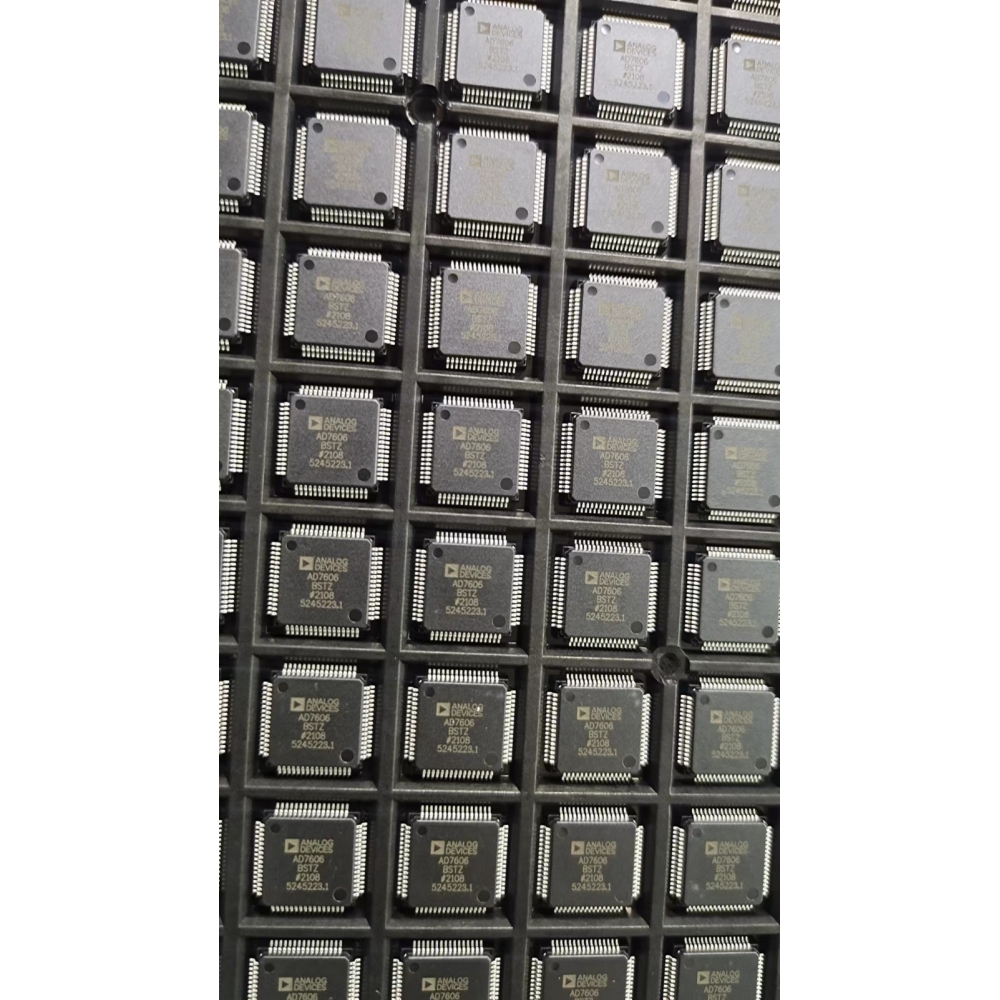

AD7606BSTZ is a high-performance analog-to-digital converter (ADC) produced by Analog Devices (ADN), which plays an important role in data acquisition systems, and is sold from stock by the special distribution agent of Zhongtian Science and Technology Semiconductor (Shenzhen) Co.

The following is a detailed description of the AD7606BSTZ:

I. Basic Overview

Product type: AD7606BSTZ is a high-precision data acquisition system (DAS) chip, belonging to the ADC (analog-to-digital converter) category.

Main features: The chip integrates analog input clamping protection, second-order anti-alias filter, sample-and-hold amplifier, 16-bit charge redistribution successive approximation analog-to-digital converter (ADC), flexible digital filter, 2.5V reference voltage source, reference voltage buffer, as well as high-speed serial and parallel interfaces and other functional modules.

Second, the main technical parameters

Resolution: 16-bit, the effective resolution can be as high as 23.5-bit (according to some information description), providing very high measurement accuracy.

Number of channels: usually described as 8 single-ended input channels, but there are also information that it has 16 single-ended or 8 differential input channels, according to the actual needs of the configuration.

Sampling rate: up to 200kSPS (samples per second), to support rapid data acquisition.

Power supply voltage: 5V single power supply, while compatible with a certain range of voltage fluctuations (e.g. 2.3V ~ 5.25V).

Operating Temperature: Supports a wide temperature range of -40℃~+85℃, suitable for a variety of industrial environments.

Package form: 64-pin LQFP package (10x10mm) for easy PCB layout and installation.

III. Functional Characteristics

High precision: With its high resolution and low noise characteristics, AD7606BSTZ is able to realize high-precision signal acquisition and processing.

Multi-channel input: Supporting multiple input channels, it can simultaneously acquire multiple analog signals to improve data acquisition efficiency.

Fast conversion speed: High-speed sampling rate enables it to capture fast-changing signals to meet application scenarios with high real-time requirements.

Low Power Consumption: Manufactured using a low-power CMOS process to ensure high performance while reducing power consumption.

Flexible interfaces: Supports a variety of standard digital interfaces such as SPI, QSPI, MICROWIRE, etc., which facilitates integration with various microcontrollers or DSPs.

Built-in PGA and Input Range Selection: Integrated Programmable Gain Amplifier (PGA) and Input Range Selection make the input signal adjustment more flexible.

IV. Application Areas

The AD7606BSTZ is widely used in various fields that require high precision data acquisition, including but not limited to:

Industrial measurement and control: such as process control instrumentation, data acquisition systems, industrial instrumentation, etc.

Medical equipment: such as medical imaging equipment, bio-signal detection equipment, medical diagnostic instruments, etc.

Communication and network equipment: such as base station RF signal acquisition, network test equipment, optical communication receivers, etc.

Test and measurement equipment: such as high-precision oscilloscopes, spectrum analyzers, signal sources, etc.
