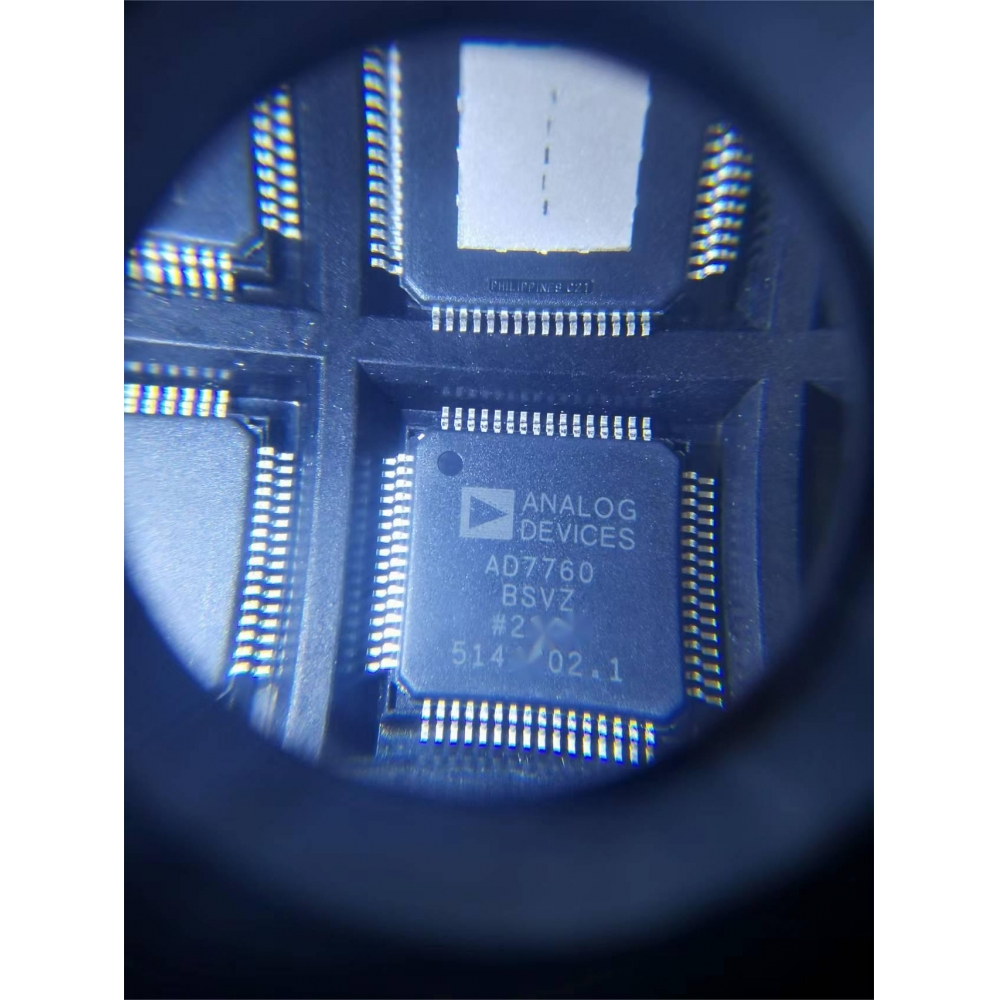

Manufacturer: Analog Devices Inc.
Product Category: Analog to Digital Converters - ADC
RoHS: YES
Series: AD7760
Mounting Style: SMD/SMT
Package / Case: TQFP-64
Resolution: 24 bit
Number of Channels: 1 Channel
Interface type: Parallel
Sampling ratio: 2.5 MS/s
Input Type: Differential
Structure: Sigma-Delta
Analog supply voltage: 2.5 V to 5.25 V
Digital supply voltage: 2.5 V
SNR - Signal to Noise Ratio: 112 dB
Minimum operating temperature: - 40 C
Maximum operating temperature: + 85 C
Package: Tray
Trademark: Analog Devices
Development Kit: EVAL-AD7760EDZ
Gain error: 0.016 %FSR
Height: 1 mm
INL - Integral Nonlinearity: +/- 0.00076 % FSR
Input voltage: n++2 Vp-p/n++3.25 Vp-p
Length: 7 mm
Humidity sensitivity: Yes
Number of ADC inputs: 1 Input
Number of Converters: 1 Converter
Operating supply voltage: 2.5 V, 3.3 V, 5 V
Pd-Power Dissipation: 958 mW
Product type: ADCs - Analog to Digital Converters
Reference Type: External
Sample and Hold: No
Subcategory: Data Converter ICs
Supply Voltage - Max: 2.5 V, 3.3 V, 5 V
Supply voltage - min: 2.5 V, 3.3 V, 5 V
Width: 7 mm
Unit weight: 360.600 mg
