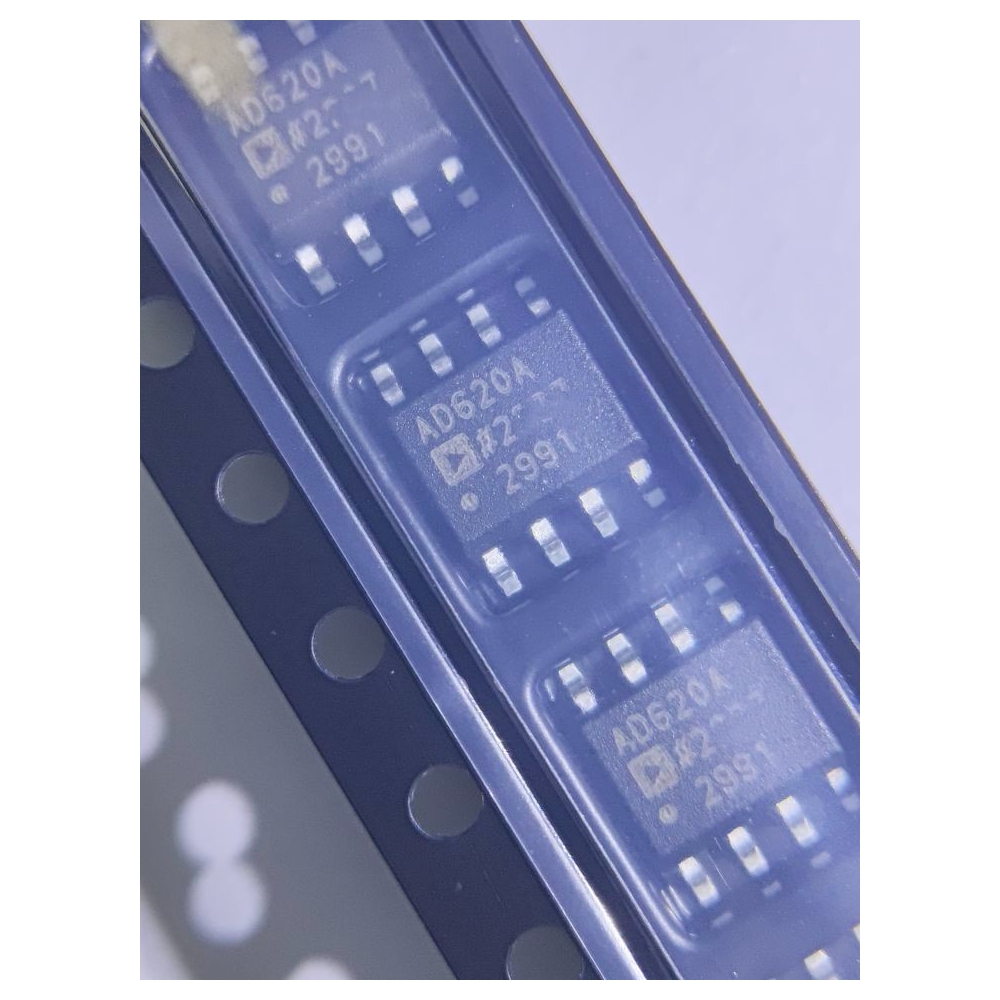

Manufacturer: Analog Devices Inc.
Product Type: Instrumentation Amplifiers
RoHS: YES
Series: AD620
Number of channels: 1 Channel
3dB bandwidth: 1 MHz
SR - Conversion Rate: 1.2 V/us
CMRR - Common Mode Rejection Ratio: 93 dB
Ib - Input bias current: 500 pA
Vos - Input bias voltage: 30 mV
Supply voltage - max: 18 V
Supply voltage - min: 2.3 V
Operating supply current: 900 uA
Minimum operating temperature: - 55 C
Maximum operating temperature: + 125 C
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Package: Reel
Package: Cut Tape
Package: MouseReel
Amplifier Type: Instrumentation Amplifier
Trademark: Analog Devices
Dual supply voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Gain V/V: 1 V/V to 10000 V/V
Height: 1.5 mm
Length: 5 mm
Max. dual supply voltage: +/- 18 V
Max. input resistance: 10 GOhms
Minimum dual supply voltage: +/- 2.3 V
Operating supply voltage: 2.3 V to 18 V
Pd-Power dissipation: 650 mW
Product: Instrumentation Amplifiers
Product Type: Instrumentation Amplifiers
PSRR - Power Supply Rejection Ratio: 140 dB
Subcategory: Amplifier ICs
Power Supply Type: Dual
Vcm - Common Mode Voltage: 2.3 V to 18 V
Width: 4 mm
Unit weight: 540 mg
